Location: Home > Products > Planetary Gearboxes

ANP Series Planetary Gearboxes

Gearbox Size
9-34
Ratio
25-4000
Nominal Output Torque
22-1920 kNm
Nominal Power
0.3-4975 kW
Shaft Arrangement
Coaxial or Right Angle
Send Inquiry
Send Email
Whatsapp
Share:

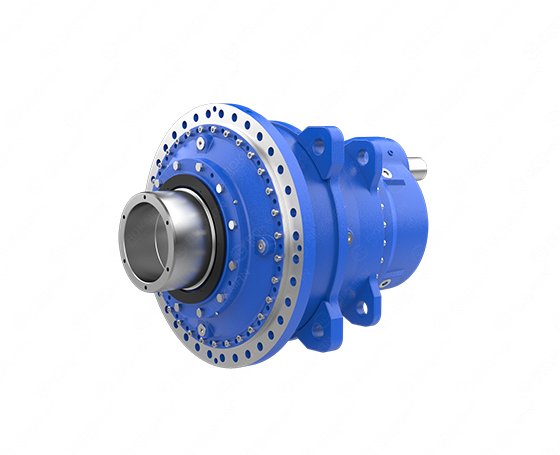

ANP Series Planetary Gearboxes
ANP Series Planetary Gearboxes
Features
Technical Data
Related Products
Solutions
Features


01
Flexible mounting positions - horizontal, vertical
02
Optimized and upgraded the gears, drive shafts, housing structure, bearings, and seals.
03
Modular design, standardized components
04
Optional condition monitoring elements or systems
Technical Data
Types Ratio Types Ratio
ANP2N (2 Stage) 25, 28, 31.5, 35.5, 40 ANP3N (3 Stage) 140, 160, 180, 200, 225, 250, 280
ANP2L (2 Stage) 31.5, 35.5, 40, 45, 50, 56, 63, 71, 80, 90, 100 - -
ANP2S (2 Stage) 45, 50, 56, 63, 71, 80, 90, 100, 112, 125 ANP3S (3 Stage) 280, 315, 355, 400, 450, 500, 560, 630, 710, 800, 900
ANP2K (2 Stage) 112, 125, 140, 160, 180, 200, 225, 250, 280, 320, 360, 400, 450, 500, 560 ANP3K (3 Stage) 560, 630, 710, 800, 900, 1000, 1120, 1250, 1400, 1600, 1800, 2000, 2240, 2500, 2800, 3150, 3550, 4000
