Location: Home > Products > Helical/Bevel Helical Gearboxes

ANH/ANB Series Helical/Bevel-Helical Gearboxes

Gearbox Size
1-28
Ratio
1.25-450
Nominal Output Torque
0.79-1260 kNm
Nominal Power
9-9463 kW
Shaft Arrangement
Parallel Shaft or Right Angle
Send Inquiry
Send Email
Whatsapp
Share:

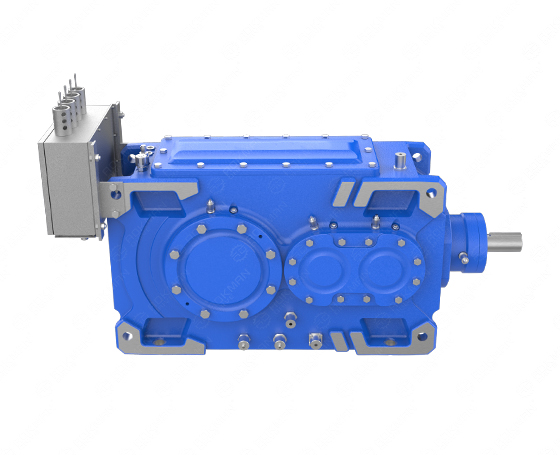

ANB Series Helical/Bevel-Helical Gearboxes
ANB Series Helical/Bevel-Helical Gearboxes

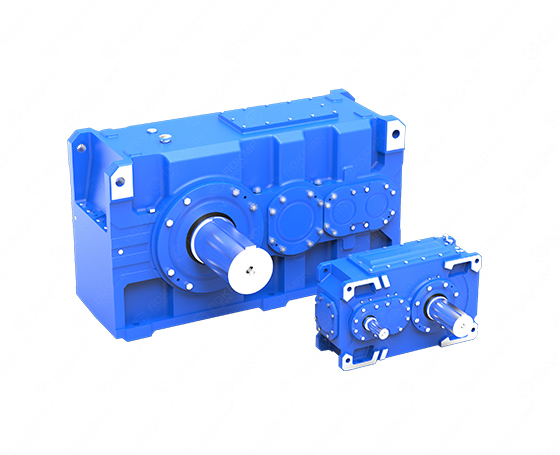

ANH Series Helical Gearboxes
Features
Technical Data
Related Products
Solutions
Features


01
Single-piece housing (size 1-12) and split housing (size 13-28)
02
Flexible mounting positions - horizontal, vertical, upright
03
Optimized and upgraded the gears, drive shafts, housing structure, bearings, and seals.
04
Modular design, standardized components
05
Optional condition monitoring elements or systems
Technical Data
ANH Series Ratio ANB Series Ratio
ANH1 (1 Stage) 1.25~5.6 - -
ANH2 (2 Stage) 6.3~28 ANB2 (2 Stage) 5~18
ANH3 (3 Stage) 22.4~112 ANB3 (3 Stage) 12.5~90
ANH4 (4 Stage) 100~450 ANB4 (4 Stage) 80~400
